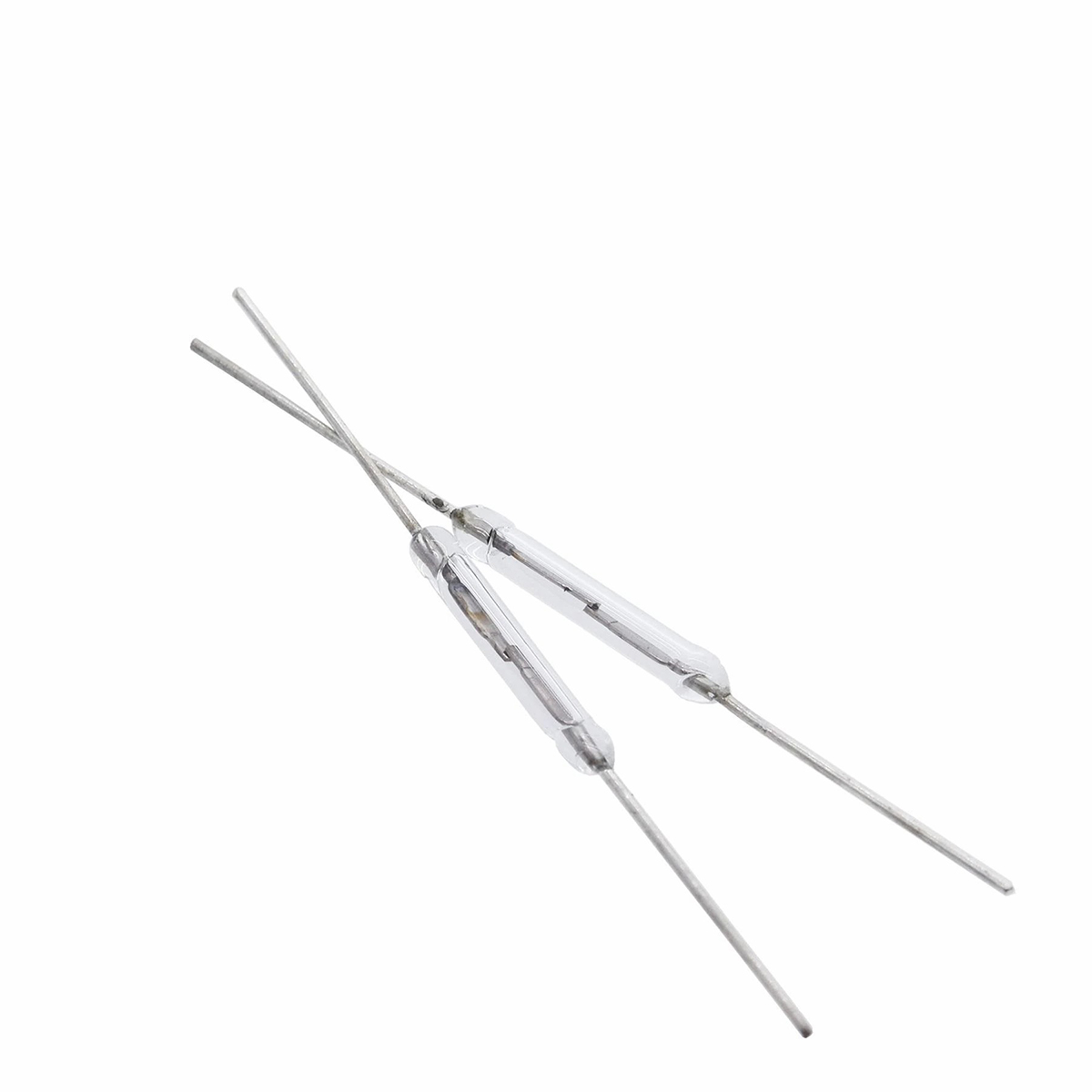

Interruptor Magnético Reed Switch

Código: SP0365

R$ 4,02

Qtde: Comprar Disponibilidade: Imediata Estoque: 1905 unidades

R$ 4,02
R$ 4,02
R$ 4,02

Reed Switch:
Tubo de vidro Diametro:2mm
Comprimento do tubo :14mm
Moves Gathers, 60VDC,0.01A.

Specifications:
Contact rating (max): 10W
Initial contact resistance (max): 100mOhm
Switch voltage (max): 100V AC
Switch current (max): 0.5A
Contact capacitance (max): 0.4pF
Position: normally open
Pull in value: 10 - 20 AT
Drop out value (min): 5
Total length: 45mm
Glass section dimensions: 14 x 2.2mm
Electrical Life:100k times

Garantia: 3 meses
